50Ton Span 22.5M European Style Double Girder Overhead Crane End Carriage
Technical Parameters:
| Drive System | Standard three-phase asynchronous motor + hardened tooth surface reducer |
| End Beam Design | Open tooth transmission with gear-rack meshing drive |
| Applicable Main Beam Span | 22.5 meters |
| Safety Protection | Limit switch, buffer device, overload protection |
| Warranty | 12 Months |
| Braking Device | Normally closed electromagnetic brake for automatic locking |
| Condition | New |
| Wheel Set | Equipped with cast steel wheels, adapted to QU-type tracks |
| Carrying Capacity | 50tons, suitable for medium industrial scenarios |
| Adaptability | High-strength bolt connection with the main beam, expandable configuration |
1. Integration of safety protection devices:
Buffers (car stops): Buffers of sufficient capacity (polyurethane or hydraulic) must be installed at both ends of the end beam to absorb the impact energy when the crane runs to the end of the track.
Trolley travel limit switch: Trigger the impact ruler or induction device to automatically cut off the trolley running power when approaching the end of the track.
Anti-collision device (optional): When there are multiple cranes in the same span or there are obstacles, anti-collision devices such as lasers and ultrasonic waves may be installed.
Track sweeper: Clear obstacles on the track.
Guardrails on both sides of the end beam: Ensure the safety of maintenance personnel.
2. Double-sided drive:
50-ton cranes usually use double-sided drive, that is, "three-in-one" drive mechanisms are installed on both end beams. This provides sufficient driving force and braking torque to ensure smooth start-up, operation and braking of large-tonnage cranes, and effectively prevents the "track gnawing" phenomenon that may be caused by unilateral drive.
3. Precision processing and installation interface:
The processing accuracy of the flange surface connecting the end beam and the main beam is high to ensure the horizontality and span accuracy of the main beam after the main beam and the end beam are connected.
The parallelism, verticality and horizontal deflection between the wheel treads are strictly required to ensure smooth operation and reduce wear and rail gnawing.
4. Easy installation and maintenance:
The modular design (especially the three-in-one drive) makes on-site installation, commissioning and subsequent maintenance (such as replacement of wheels, drive units, bearings, etc.) more convenient and quick.
Summarize the core features of the 50-ton European double-beam end beam:
Lightweight and high strength: core advantages, reducing plant load and cost.
Compact integration: "Three-in-one" drive is the hallmark, compact structure, and space saving.
High load and stability: multi-wheel arrangement (4 or 8 wheels), solid box beam, meet 50tons of load and dynamic requirements.
Bilateral drive: ensure driving force, braking force and smooth operation under large tonnage.
Smooth and reliable operation: Optimized wheel design, precision machining and high-quality bearings.
High safety: Integrated buffer, limiter and other safety devices.
Easy maintenance: Modular design, especially the three-in-one drive unit is easy to replace.
Product Tags:
|
|

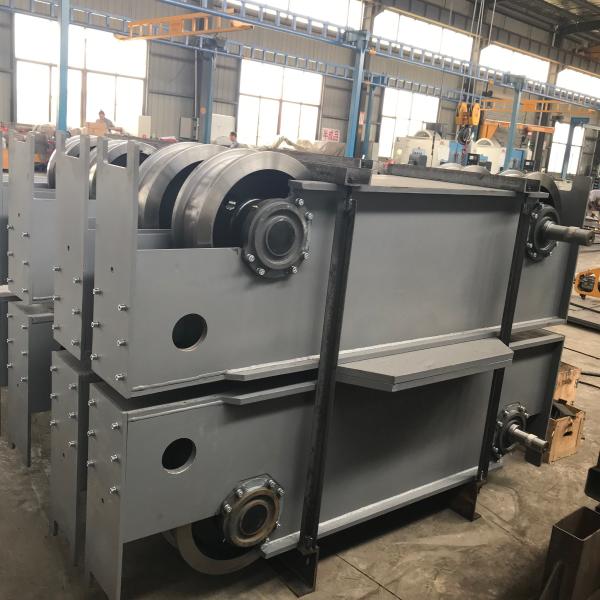

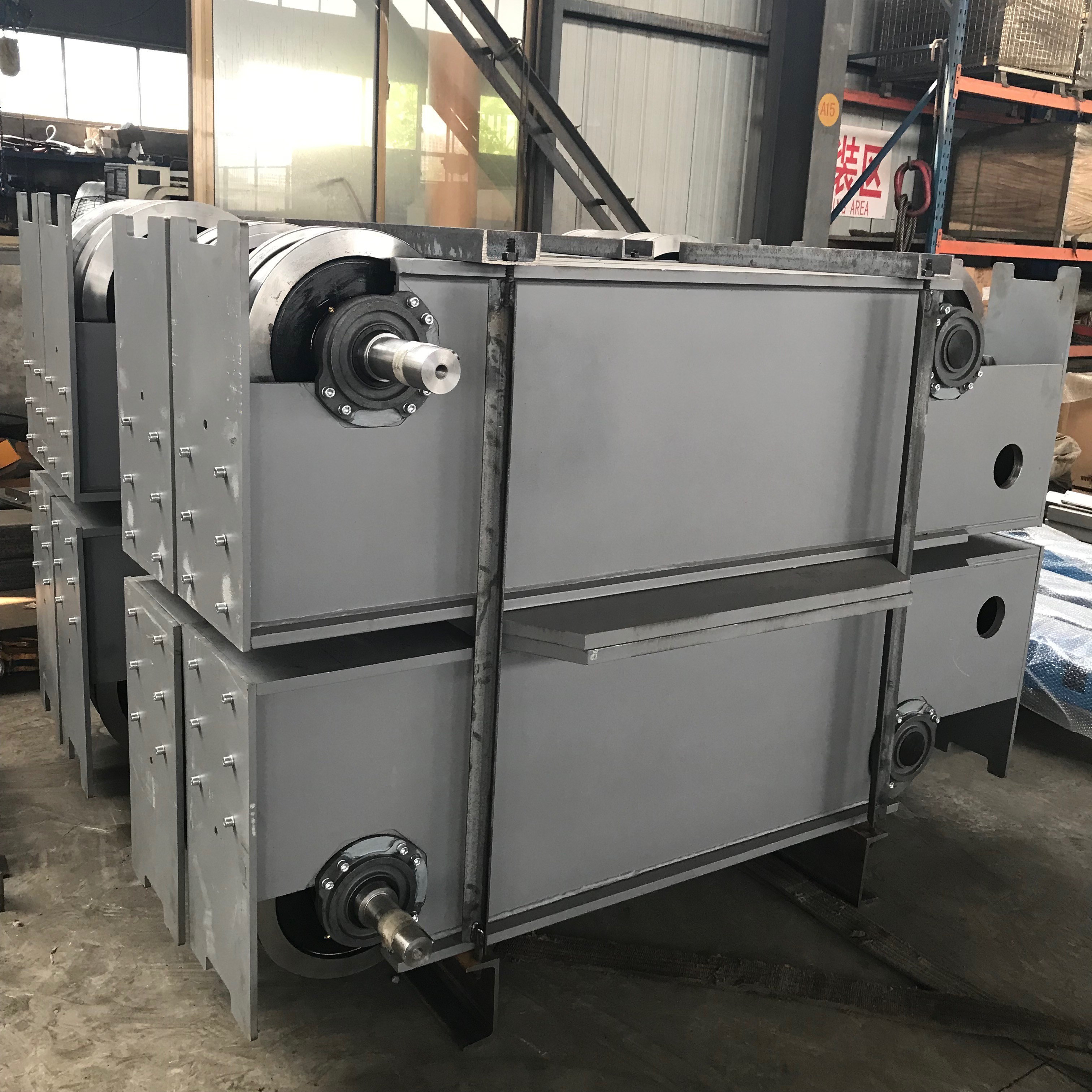

50Ton Span 22.5M European Style Double Girder Overhead Crane End Carriage Images
|
